Bass Without Blowback: Designing Festival Sub-Bass That Thrills

Introduction: The Bass vs. Neighbors Dilemma

Picture the thrill of an electronic music festival crowd when a massive bass drop hits – chest-rumbling, floor-shaking, euphoric. Now picture the not-so-thrilled neighborhood outside the festival grounds, where windows rattle and distant thumps trigger noise complaints. Low-frequency sound (sub-bass) is the double-edged sword of festival audio: it creates an immersive experience for attendees but can carry for miles, upsetting those who never bought a ticket. Successfully managing this bass vs. neighborhood dilemma is a hallmark of seasoned festival organizers worldwide.

Around the globe – from urban festivals in Miami and Singapore to rural raves in Australia and India – event teams face the same challenge. How can one deliver powerful sub-bass that delights festival-goers without generating community backlash? The solution lies in smart sound design and proactive planning. This article explores how expert festival production teams design sub-bass systems that thrill crowds on the dancefloor while keeping unwanted noise out of the neighborhood. It covers practical techniques in subwoofer directionality (cardioid and end-fire arrays), ground coupling tricks, delay tuning, real-time monitoring, and having a solid noise-complaint playbook. These insights come from years of hard-earned experience producing festivals of all sizes, and they apply to any festival producer aiming to be a good neighbor without sacrificing sound quality.

Embrace Directional Subwoofer Arrays

One of the most effective ways to keep bass on the dancefloor and out of backyards is using directional subwoofer arrays. Traditional subwoofers radiate low frequencies in all directions (omnidirectional), meaning as much bass can go backward or sideways as forward into your crowd. The result? Thumping beats audible far outside your venue. Directional arrays solve this by focusing the sub-bass energy where you want it (toward the audience) and canceling it where you don’t (toward sensitive areas like residential streets or backstage).

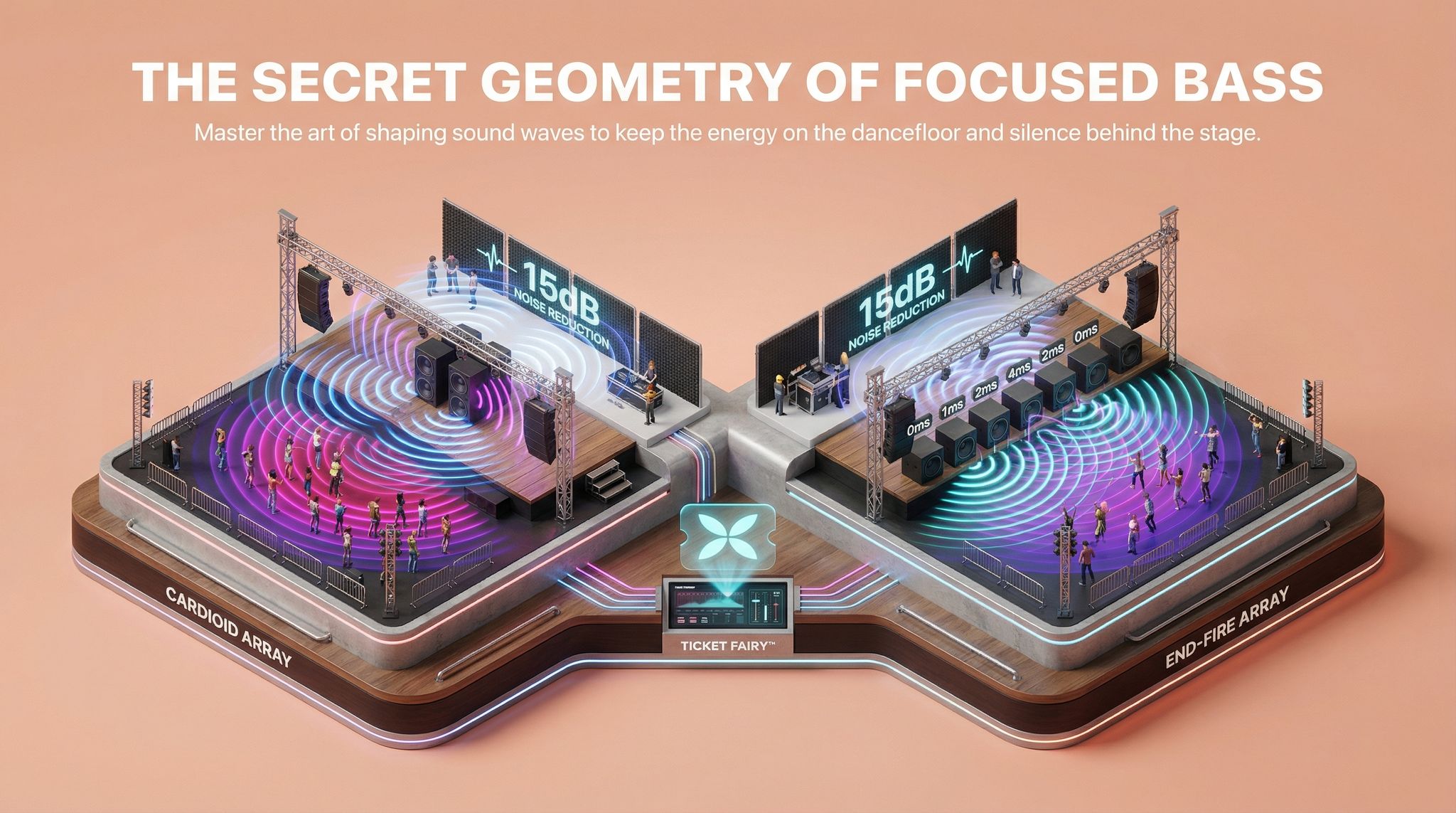

Two popular approaches are cardioid and end-fire subwoofer arrays:
– Cardioid Subwoofer Array: This configuration uses multiple subs arranged back-to-front, with one or more subwoofers facing the opposite direction (toward the stage or rear) and carefully delayed and phase-inverted. The forward-facing subs and the rear-facing sub work together to cancel low frequencies behind the stack, creating a heart-shaped (“cardioid”) dispersion pattern. In front of the stage, the crowd still feels the full force of the bass, while behind the subs, sound pressure is dramatically reduced (often by 15 dB or more). For example, a festival stage in the UK facing a village used a cardioid sub array – residents behind the stage noticed far less “boom” at night, even as the audience area stayed thunderous.
– End-Fire Subwoofer Array: In an end-fire setup, multiple subs are lined up one after another, all facing forward (toward the crowd). By adding precise time delays to the rear subs, their output arrives in sync with the front subs in the forward direction, reinforcing the bass forward. In the reverse direction, the timing is out of sync, causing the waves to cancel out. An end-fire array can achieve strong bass impact on the dancefloor with significantly less spill behind the array. This method was used at a beach festival in Indonesia – subs were deployed in a row with delays, aiming out to sea. Festival-goers got a full dose of bass on the sand, while the seaside town behind the stage heard very little of the low-end thump.

Directional arrays may require extra subs or careful digital signal processing (DSP), but they are a worthy investment. They allow festival producers to increase sub-bass levels for the crowd without breaking noise rules off-site. Keep in mind that any array designed to cancel sound in one direction might slightly reduce total output in the main direction (since some energy is used for cancellation). However, modern high-powered subwoofers and advanced DSP tuning can overcome this efficiency loss. The bottom line is that by embracing cardioid or end-fire subwoofer configurations, an event organizer can drastically control where the bass goes – maximizing impact in front and minimizing it everywhere else.

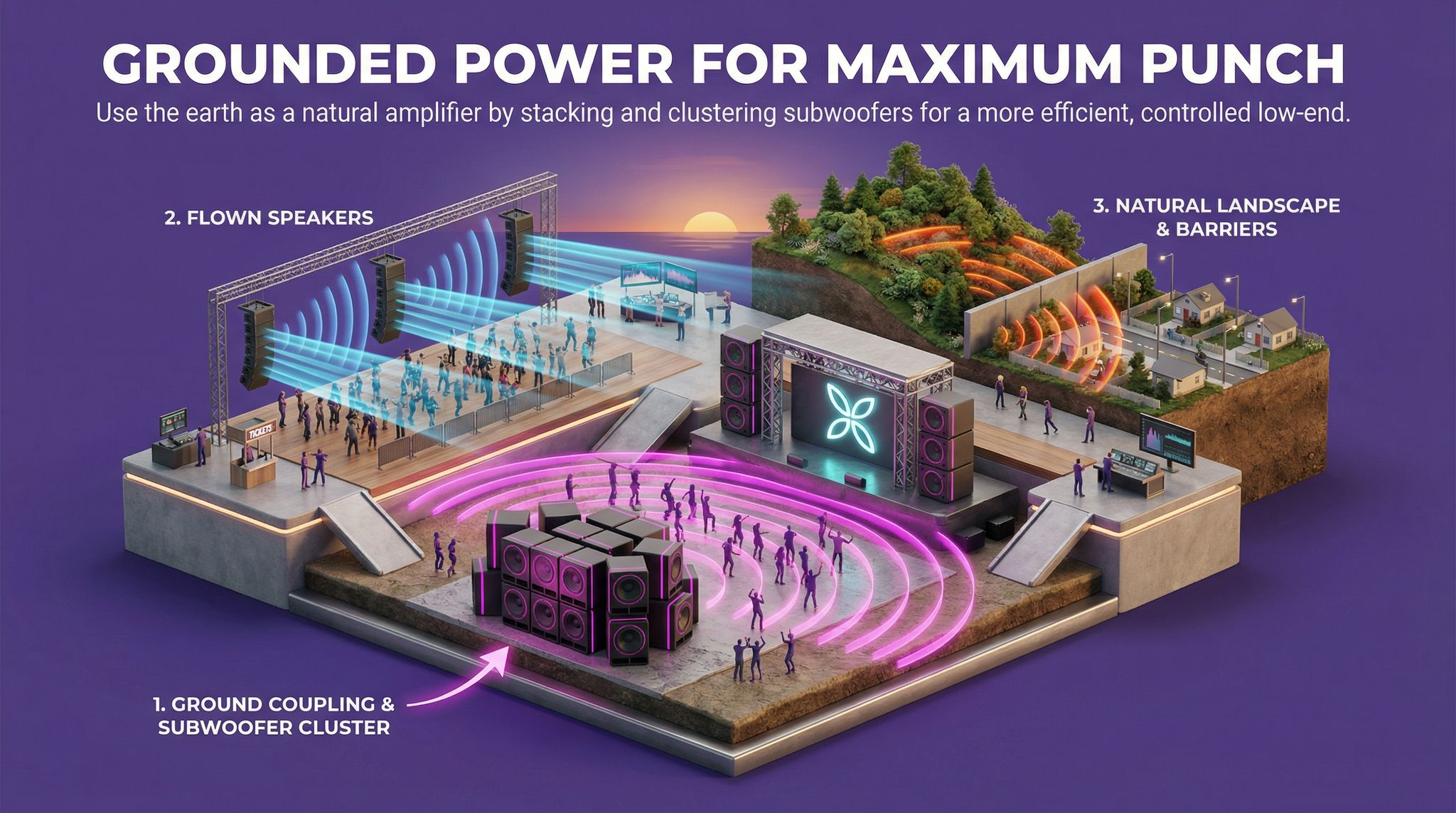

Ground Coupling and Smart Sub Placement

Where and how you place your subwoofers has a huge influence on low-end dispersion. Experienced festival teams know to use ground coupling to their advantage. Simply put, placing subs directly on the ground (or a solid surface) amplifies their efficiency in the audience area. When a subwoofer is ground-stacked, the ground itself acts as a reflective surface that reinforces bass frequencies, effectively doubling the acoustic energy directed into the crowd. This can yield an increase of up to 3–6 dB in the sub-bass output compared to a sub suspended in mid-air. More bass output for free means you don’t have to push the amps as hard to thrill the audience – which in turn can reduce how much sound energy bleeds out to distant areas. In Mexico City’s open-air festivals, for instance, production crews stack subs low and wide on the ground to harness this coupling effect, giving the dancefloor a physical punch without needing excessive volume that might carry beyond the venue.

Ground coupling also helps keep the bass “hugging” the earth. Low frequencies tend to travel along surfaces; by keeping subs on the ground, you encourage the bass waves to propagate along the floor where your crowd is, rather than beaming upward into the atmosphere (where they can travel further afield). Avoid flying subwoofers high up in outdoor settings unless absolutely necessary for coverage – flown subs can project bass over obstacles and into neighborhoods more readily. It’s often better to concentrate subs at ground level and use physical structures to aid containment. For example, at a canyon amphitheater festival in New Zealand, organizers placed their subwoofer array against a side of a hill. The hill acted as a natural barrier, absorbing and blocking bass from traveling in that direction.

Also pay attention to subwoofer clustering and spacing. Clustering multiple subs together in a tight pack (instead of spreading them apart across a stage) leads to mutual coupling between the subs, increasing efficiency and focusing the bass. A central sub array (all subs grouped center-front of the stage) can provide a very controlled coverage pattern and reduce interference nulls that occur with separated left-right stacks. The trade-off is a less stereo effect, but for sub-bass (which the human ear can’t localize well anyway), mono often works best. Many large EDM festivals in the United States and Europe now opt for a center or tight clustered sub arrangement to get a smoother, more controlled bass field on the dancefloor. By contrast, widely spaced sub stacks can create alternating zones of booming bass and weak spots (known as power alleys and nulls), which not only hurt the crowd experience but can send unpredictable lobes of bass off-site. Keep your subs together and on solid ground – this maximizes their punch and predictability, allowing you to manage the low-end energy much more effectively.

Dialing in Delay and Phase Alignment

Technology gives festival audio teams incredible control over when sound waves hit various points in the venue. Using delay and phase alignment correctly is like fine-tuning the aim of a cannon – it ensures your bass hits the target (your audience) at full force and nowhere else. Delay timing is especially crucial when deploying the directional arrays mentioned above or any multi-source sub setup.

For a cardioid subwoofer array to work as intended, the rear-facing sub(s) must be delayed precisely so that their output cancels the forward subs’ output behind the stack. If the timing is off by even a few milliseconds, instead of cancellation, you could get reinforcement in the wrong place – effectively amplifying the bass out back (the opposite of what you want!). Festival audio engineers often use measurement mics and audio analyzers during setup to tweak these delay values until the lowest frequencies virtually vanish behind the sub array. The lesson: always calibrate your cardioid or end-fire delays on-site. Factors like the exact distance between subs, temperature, and humidity (which affect sound speed) mean the ideal delay setting can differ from the theoretical value. A wise event organizer allocates time in the schedule for the audio team to do this critical tuning before gates open.

Delay and phase alignment are also key to integrating subwoofers with the main stage speakers (the mid-high line arrays or stacks). Proper alignment at the crossover frequency (where subs and main speakers overlap) will ensure a smooth transition and avoid phase cancellation that can create dead zones or weird bass peaks. Misalignment might produce a scenario where on one part of the dancefloor the kick drum disappears (cancelled by out-of-phase interaction), while off to the side that same kick booms excessively (from a phase-addition lobe shooting out). Those rogue lobes can leap far beyond your site. To keep low-end energy on the floor, synchronize the arrival of bass waves from all sources. In practice, this means setting delays so that a bass note from the subs and one from the main speakers hit the listening area in lockstep. Many festival sound crews use tools like Smaart to verify phase alignment throughout the venue. The result is a tighter bass sound that doesn’t require excess volume to compensate for cancellations, which again helps avoid leaking noise to the surroundings.

Another delay tactic for outdoor festivals is using delay stacks (additional speaker towers further back in the audience) instead of just cranking the main stage volume to reach the far field. While delay stacks mainly carry mid-high frequencies, if they include any low-frequency elements, those too should be time-aligned carefully. The aim is that no matter where someone stands in the crowd, they get a coherent hit of bass at the same time. This coherence means less sloppy overlap and less accidental projection of bass beyond the audience zone. In short, precision in timing = tighter bass coverage, which lets you thrill the crowd with clarity instead of just raw volume.

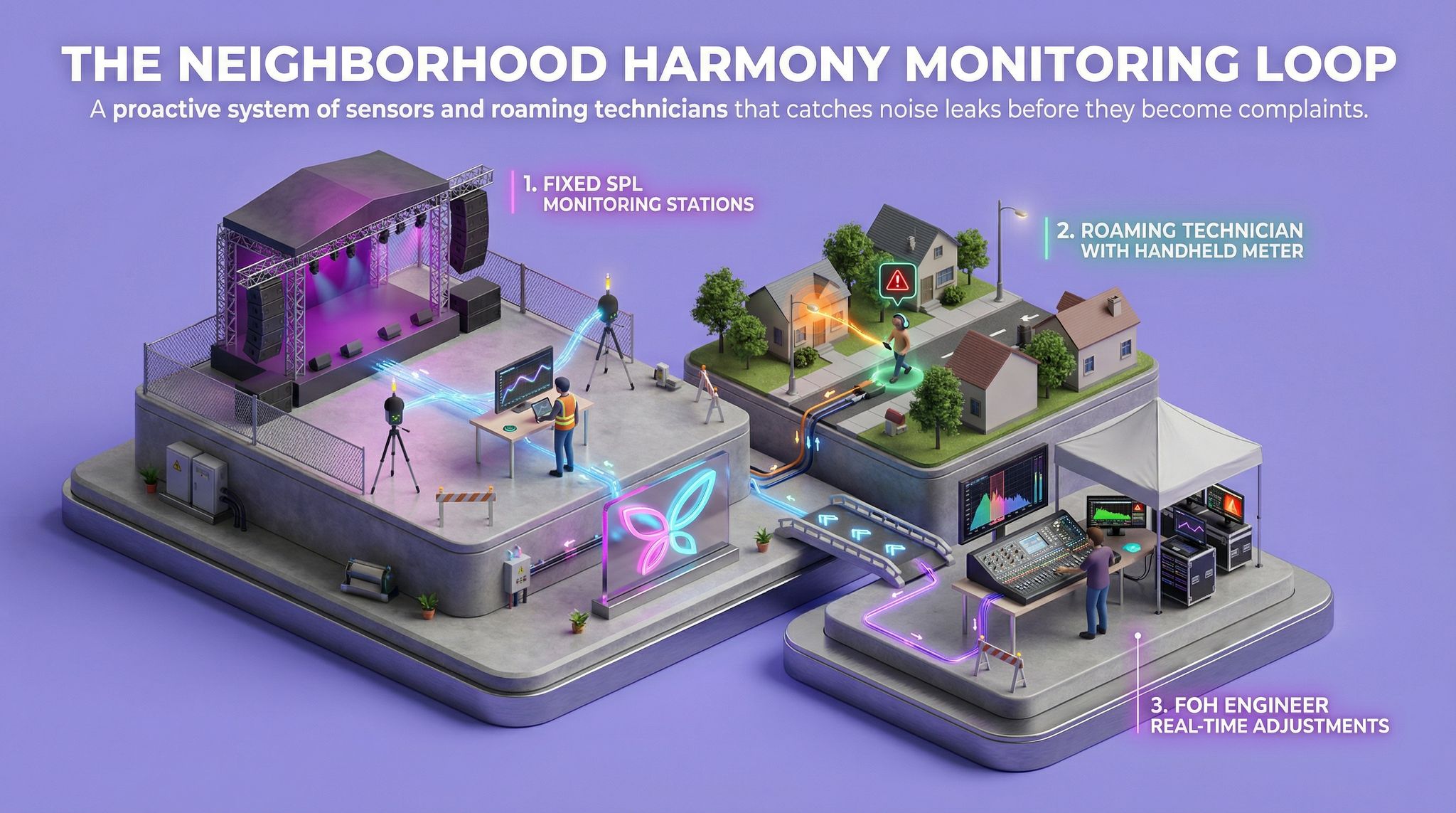

Real-Time Monitoring and Adaptive Tuning

Even after designing a directional, well-focused sub-bass system, the work isn’t over. Live events are dynamic – crowd size changes, weather shifts, and each artist might push the system differently. Top festival organizers implement real-time sound monitoring and adaptive tuning during the show to keep the bass levels optimal and contained as conditions evolve.

One essential practice is deploying SPL (sound pressure level) monitoring stations. This could mean setting up microphones or sound level meters at key points: at front-of-house (to see what the engineer is mixing), at the edges of the festival site, and even in neighboring areas of concern (just outside the venue boundary, or across the street in a residential zone). Modern systems can feed these monitors’ readings back to a central display, allowing the audio team to watch levels in real time. For example, a festival in Germany placed calibrated mics at the fence line of a nearby housing area; the FOH engineer had a tablet showing the live dB readings there all night. If the low-frequency levels started creeping up towards the agreed limit, they could respond immediately – before any neighbor reached for their phone to complain.

In addition to fixed monitors, use roaming audio techs equipped with handheld SPL meters or even just a tablet connected to the monitoring system. These team members can walk the perimeter (and even venture into the surrounding community during the event) to gauge what the festival truly sounds like from various vantages. They’re listening for the bass “leaking” out. Is there an alleyway three blocks away where the sub-bass suddenly resonates loudly? A roaming tech can spot that and radio back to adjust the system. Sometimes turning a particular sub array down a decibel or two, or slightly tweaking the system EQ at a problematic frequency (e.g., a stubborn 50 Hz tone), is enough to resolve a hotspot.

Crowd density changes are another factor to monitor. A densely packed audience absorbs sound energy – mainly in higher frequencies, but to some extent the mass of bodies can also dampen the low-end as it travels through them. Early in the day, when only a few hundred people are scattered on a field, your bass could project further (less absorption) than it will later at night when tens of thousands are crammed in front of the stage. Smart festival audio crews often run a full system tuning twice: once in an empty venue and then another “touch-up” after the crowd arrives. Using roaming mics or simply observations, they might find the sub-bass feels too aggressive in an empty field and dial it back a bit initially. Conversely, once the crowd is in full force and jumping, they might need to add a bit more sub gain or EQ to maintain the same perceived impact for the audience (since the crowd itself is now soaking up some energy). Real-time monitoring helps catch these needed adjustments.

Don’t forget the influence of the environment: wind direction, temperature, and humidity can all affect sound propagation. A wind blowing toward town can carry bass farther in that direction. If the breeze shifts in the evening, your roaming mic person might report increasing thump in an area that was quiet before – time to adjust levels or arrays accordingly. Having an on-site audio team that actively listens and tweaks throughout the event is a game-changer. It can turn a potential noise complaint situation into a non-issue because you caught it before anyone else did. The audience will never know all the behind-the-scenes adjustments, but they will certainly notice that the music feels consistently great. Meanwhile, the neighbors will hopefully notice nothing at all – which is exactly the goal.

Building a Noise Complaint Playbook

Despite best efforts in system design and monitoring, sometimes the dreaded noise complaint still comes in. Every festival organizer should have a noise complaint playbook: a predefined plan of action to handle noise issues calmly, swiftly, and effectively. This not only helps protect the event’s relationship with the community but also shields you from legal or permitting troubles. Here’s how to craft and implement a robust noise management plan:

1. Define Measurable dB Thresholds: Long before show day, determine the sound level limits you must respect. Check local regulations – many cities and countries have specific decibel limits for outdoor events, often with stricter limits for nighttime. For example, parts of Australia might enforce a limit around 65 dB(A) at the closest residence, and many jurisdictions worldwide use standards like “no more than 5 dB above ambient noise at the property line” after a certain hour. Whatever the rules, translate them into concrete numbers (including for bass frequencies, which might require looking at C-weighted or unweighted low-frequency measurements). Then set your own internal trigger thresholds slightly lower than the legal limits. If you know 85 dB(C) at the boundary is the legal max, you might set 80 dB(C) as your caution level to give a buffer.
2. Monitor and Log: Use the real-time monitoring discussed earlier to constantly track these levels. Keep an automatic log (many SPL monitoring software can record a time-stamped log of dB levels). This provides data in case of any dispute – you can show, for instance, that between 10PM and 11PM you averaged 78 dB(C) at the boundary, under the limit. Logging also helps you spot trends (e.g., bass creeping up during certain DJ acts).
3. Instant Response to Thresholds: Your playbook should state exactly what happens when a threshold is crossed. For example: “If perimeter low-frequency levels exceed 80 dB(C) for more than 1 minute, notify the audio crew to reduce subwoofer output by 3 dB.” Having such rules in place takes out guesswork and delays. The FOH engineer (or a dedicated “noise officer” on the team) should be empowered to make quick adjustments. This could be a slight master volume reduction, a bass EQ cut, or muting a portion of the sub array temporarily – whatever achieves the needed reduction.
4. Communication Channels: Establish clear lines of communication for complaints. Ideally, provide a hotline number or a contact person for residents to call if they’re disturbed. This way, a complaint comes directly to your team in real time, not just to the authorities after the fact. Promote this contact in advance during community outreach (e.g., mail a flyer to nearby homes or coordinate with local authorities so people know who to call). When a complaint comes in, log the time, location, and nature of the complaint.
5. Complaint Triage and Action: Treat the first complaint as a serious warning sign. Dispatch a monitoring crew to the location of the complaint if feasible – measuring the sound there provides context. Was it truly above your target threshold, or is the neighbor extra sensitive? Either way, respond with empathy. For instance, have your community liaison thank them for alerting you and assure them the team is addressing it. Then take action: if your measurements show it’s loud there, implement an immediate volume or bass reduction (even if it’s within legal limits – being a bit proactive can prevent multiple calls). If it’s not particularly loud but the person is unhappy, still consider a small adjustment to show goodwill.
6. Escalation Plan: Outline what happens if multiple complaints come or if a complaint involves authorities. For example: After a second complaint from the same area, reduce sub-bass frequencies by an additional 3 dB and inform the festival manager. If despite adjustments more complaints keep coming, you might decide to temporarily lower the overall system volume by a noticeable amount (say, 5 dB) for a few minutes to appease, then gradually nudge it up in small steps if the situation allows. In a worst-case scenario where the police or local officials on-site demand action, be prepared to comply – that could mean pulling the plug on certain subwoofers or ending the show slightly early. It’s painful, but losing a few minutes of music is better than jeopardizing your festival’s future by ignoring authorities.
7. Community Relations and Follow-Up: A good playbook isn’t only reactive; it’s proactive. Before the festival, engage with the local community – let them know you have a sound management plan and a number to contact. This can make neighbors more forgiving, because they feel respected and heard. After the event, consider sending a note or holding a debrief with local residents or officials: share the data you logged (“Noise levels stayed under the limit, and all complaints were addressed within minutes”). This transparency builds trust and can make getting permits easier for the next year.

By having a clear noise complaint protocol, festival producers in places as diverse as California, Spain, and Singapore have avoided souring relations with their neighbors. In one case, a festival in Brooklyn, New York, set up a community hotline and stationed noise monitoring staff in the adjacent neighborhood. They received a few calls on opening night; each time, they promptly reduced low-end frequencies and the calls stopped. The NYPD, seeing their responsive approach, was satisfied and the event continued without issue. Preparation and humility in dealing with noise complaints go a long way. It shows everyone – the audience, the regulators, and the community – that your festival can party responsibly.

Balancing Thrills and Respect: The Payoff

Implementing these sub-bass design strategies and management plans may seem like a lot of extra work, but the payoff is huge. You get to deliver the full-throttle, thrilling bass experience that is the hallmark of great electronic music festivals and keep the surrounding community (and officials) on your side. Festivals that manage this balance earn a reputation for professionalism. They’re more likely to secure permits year after year, since authorities know the organizers can control the event’s impact.

On the flip side, festivals that ignore noise control can face serious consequences. It only takes one especially angry neighborhood or a strict city council to shut down future events or slap organizers with heavy fines. There are infamous examples, like a festival in Italy that had its last day canceled by authorities due to repeated overnight noise violations, or an EDM event in Los Angeles that struggled to get permit renewal after residents petitioned about bass levels. These incidents underscore an industry truth: community goodwill is as important as ticket sales for a festival’s longevity.

By investing in quality sound design (directional subs, proper placement, and calibration) and by training your team in real-time audio management and complaint handling, you’re essentially buying an insurance policy for your event. You ensure that the headlines after your festival are about the amazing performances – not about how the whole town couldn’t sleep. Experienced festival producers all agree: thrill your attendees, respect your neighbors, and your festival will thrive.

Key Takeaways

• Use Directional Bass Setups: Deploy cardioid or end-fire subwoofer arrays to focus bass towards the crowd and cancel it elsewhere. This dramatically reduces low-frequency spill into unwanted areas.
• Leverage Ground Coupling: Ground-stack your subs and cluster them smartly. Using the ground surface and tightly packed sub arrays boosts efficiency and keeps bass energy flowing along the ground where the crowd is, rather than beaming off-site.
• Dial In Your Delay: Properly time-align and phase-align subwoofers (with each other and with mains) so that bass waves add up in the audience and cancel out where they shouldn’t be. Well-tuned delay settings aim the low-end impact exactly where you want it.
• Monitor in Real Time: Don’t “set and forget” your sound. Use real-time SPL monitoring and roaming sound checks to watch bass levels at the venue edges and beyond. Be ready to tweak system EQ or volume on the fly as crowd size, wind, or other factors change.
• Adapt to the Crowd: Recognize that an empty field and a packed festival behave differently acoustically. Plan to re-tune or adjust levels once the audience is in place to maintain consistent, controlled bass that is felt by fans but not by far-away neighbors.
• Have a Noise Complaint Plan: Create a clear playbook with dB thresholds that trigger action. Know how you’ll respond to complaints: who will communicate with the complainer, what immediate adjustments to make, and how to log and escalate the issue if needed.
• Protect Your Festival’s Future: By delivering amazing bass responsibly, you build trust with the community and authorities. This protects your festival from fines, last-minute shutdowns, or license issues, ensuring you can keep the music going year after year.
